Electrical / Lighting Systems
Main Control Board
Type: Electronic Theatre Controls (ETC) Express 48/96
- Channels: 192
- DMX Outputs: 1024
- Number of Cues: 600
- Number of Faders: 96
- Number of Submasters: 24, ten pages each
- Primary Console Location: Stage Left, behind plaster line
- Alternate Console Locations: Stage Right, Balcony
Dimmers
- Number: 144
- Brand: ETC
- Wattage: 2500
- Age: Installed Summer 2000
- Service: 300 Amp 3 Phase Wye Total Available
Road Show: Disconnects are available on Stage Left for road show feed. This disconnect has 5 lugs for hook-up. This panel is part of the 300 Amp total load available and is not on a separate circuit.
All patching/channel assignment is done at the lighting control panel. The default is a one dimmer-per-channel system. Additional (road show) dimmers may be added to the system for enhanced capability.
In addition, 24 circuits may be diverted for overhead lighting, etc. by using the “either/or” panel at stage left. This panel also provides connectivity to eight circuits located on the balcony rail. These circuits are currently connected to the 8”/10” ellipsoidals attached to the balcony rail. The stage manager or a designated assistant will provide assistance in using this panel.

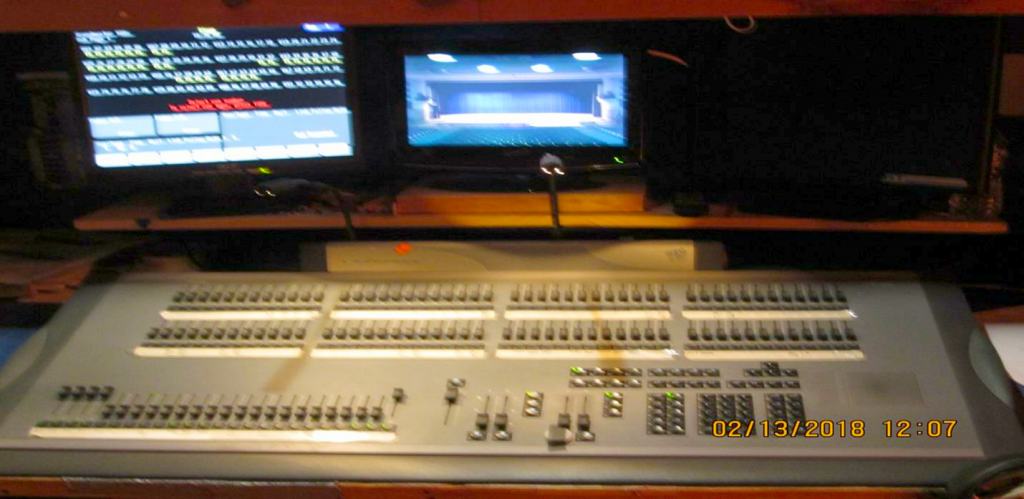

Lighting Board
Lighting Equipment Inventory
Movable Stage Instruments
| Qty | Description |
| 7 | Strand Lighting 8″ 13° ellipsoidals (FOH – balcony railing) |
| 1 | Strand Lighting 10″ 9° ellipsoidal (FOH – balcony railing) |
| 1 | Strand Lighting 6″ 19° ellipsoidal |
| 12 | Times Square Lighting 6X16 ellipsoidals (FOH – Attic) |
| 4 | Century Lighting 6” Radial ellipsoidals (FOH – Attic) |
| 5 | Source4 50° ellipsoidals |
| 6 | Source4 36° ellipsoidals |
| 4 | Source4 26° ellipsoidals |
| 4 | Source4 10° ellipsoidals |
| 2 | Source4 Jr. 50° ellipsoidals |
| 2 | Source4 Jr. 26° ellipsoidals |
| 9 | Century Lighting 8” Fresnels |
| 4 | Century Lighting 6” Fresnels (2 w/Edison plugs) |
| 12 | Source4 PAR-EA-1 w/VNSP, NSP, MFL or WFL lenses |
Other Instruments
| Qty | Description |
| 1 | Xenon SuperTrooper II follow-spot (FOH – projection booth) |
Fixed Stage Instruments
Four (4) Border strips on fly-pipes (not relocatable) each consisting of alternating White, Yellow, Red, Blue convex lenses. Colors are separately addressable, as are stage left, stage right. Each Border strip has an ETC flex-channel circuit with 6 drops, and also one addressable multi-drop circuit on each side (Border 1 has four addressable drops). All border strip drops are equipped with 3-pin stage plugs.
Eight (8) footlight strips may be rotated from beneath the stage apron, each consisting of alternating White, Red, Blue convex lenses. Colors are separately addressable, as are stage left, stage right.
Six (6) sets of addressable flush-mounted floor pockets (3 sets per side) with 3- pin stage plugs receptacles can be used for additional power requirements.
Additional Edison-plug power outlets of 200 AMP service are available along the plaster line and rear wall.
